Integrating KNX (Konnex) with a solar system offers significant benefits in terms of energy management, efficiency, and automation. By linking solar power generation and KNX building automation, you can create a smart, sustainable, and energy-efficient building. This integration used for real-time monitoring of solar energy production, battery storage, and energy consumption, while automating the control of building systems such as lighting, HVAC, and shading based on available solar power.
In this article, we will explore the process of integrating KNX with a solar system, the benefits of such integration, and how it enhances building automation for energy savings, comfort, and environmental sustainability.
1. What is KNX and Solar System Integration?
KNX is a widely used open-source communication protocol for building automation. It connects various building systems such as lighting, heating, cooling, security, shading, and more, enabling centralized control and monitoring. KNX is known for its flexibility, interoperability, and ability to integrate with different devices and systems.
A solar system typically consists of solar panels, inverters, batteries, and energy management systems (EMS) that convert sunlight into electricity. By integrating the solar system with KNX, building owners can monitor solar energy production, storage levels, and optimize energy consumption based on the available solar power.
2. Benefits of Integration
1. Smart Energy Management
Integrating KNX with a solar system enables smart energy management within buildings. The system can automatically adjust the operation of various building functions based on the amount of solar energy being generated, stored, or used, reducing reliance on the grid and minimizing electricity costs.
2. Real-time Monitoring and Control
Real-time data from the solar system, such as power generation, battery charge levels, and energy consumption, can be directly fed into the KNX system. This allows building managers or occupants to monitor energy flow and optimize usage from a centralized control interface.
3. Enhanced Efficiency and Sustainability
The integration enables energy-efficient management by switching building systems (e.g., lighting, HVAC) to solar power when available. It ensures the building consumes solar energy before relying on grid electricity, contributing to energy savings, lower carbon footprint, and environmental sustainability.
4. Automated Building Systems
KNX integration can automate the operation of energy-consuming systems based on solar energy production. For example, when the solar energy production is high, the system automatically activate air conditioning or charge batteries, ensuring that solar energy is utilized effectively.
5. Reduced Electricity Costs
By using solar power more efficiently and reducing dependency on grid electricity, the integration helps significantly lower electricity bills. Buildings can shift to solar-generated power during peak hours or when the cost of electricity from the grid is higher.
3. How to Integrate KNX with a Solar System
Step 1: Choose the Right Solar Inverter and Energy Management System
The first step is selecting a solar inverter that supports integration with building automation systems. Huawei, SMA, Fronius, and other major brands offer smart inverters with integrated energy management capabilities. The inverter should have the capability to communicate with external systems like KNX via a communication gateway or API.
Step 2: Install a Gateway

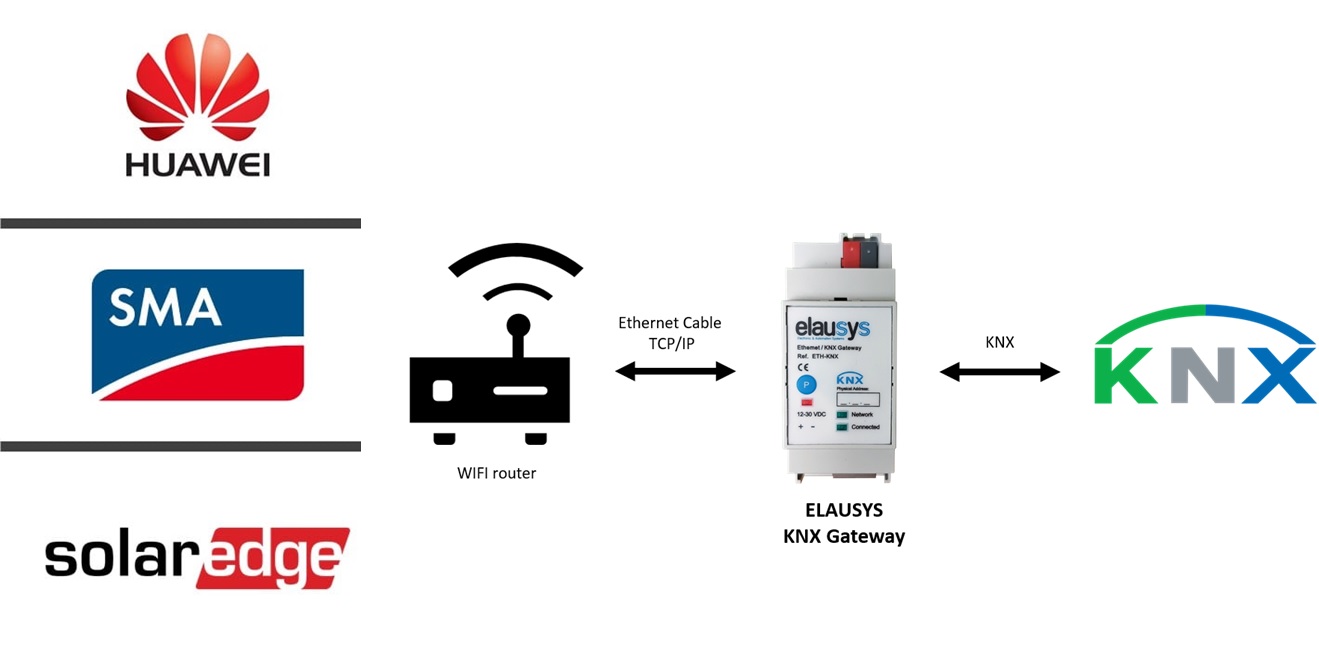

A KNX-to-Solar Gateway or interface is essential for communication between the KNX building automation system and the solar system. These gateways convert the data from the inverter (e.g., energy production, battery status, and consumption data) into a format that can be understood by the KNX system.
There are two primary methods for integrating systems:
- Direct Integration: The solar system communicates directly with KNX via a gateway or interface, using an open protocol like Modbus, BACnet, or KNXnet/IP.
- Middleware Integration: A third-party software platform (middleware) used to translate between solar system data and the KNX protocol, often adding additional functionalities like advanced analytics and monitoring.
Step 3: Configure Data Mapping
Once the communication interface is set up, the next step is data mapping. It involves defining which solar data points (e.g., energy production, battery status, power usage) monitored and controlled via KNX.
Map this energy group only when a photovoltaic system is installed in the house.
An inverter delivering the energy data has to be connected to the controller, commissioned, and following KNX objects provided:
- Active power: It is the actual power generated by solar panels.
Assign this KNX object unit with W or kW. - Active energy: It is the total cumulative energy generated by solar panels.
Assign this KNX object unit with Wh.
Step 4: Implement Automation Logic
Automation logic must be programmed into the KNX system to control building systems based on solar energy production. For example:
- HVAC systems set to switch on only when solar energy exceeds a specific threshold.
- Lighting automatically dimmed or turned off during peak solar production hours.
- Energy storage (batteries) charged when there is excess solar power, and used when solar generation is low.
The KNX system will ensure that energy is being used as efficiently as possible, shifting loads and optimizing the operation of the building’s systems.
Step 5: Test and Fine-tune the Integration
Once everything is set up, thorough testing is essential to ensure that the solar energy data flows correctly into the KNX system, and the control logic is functioning as intended. Make sure to verify that the energy management strategies, such as switching between solar and grid power, are working efficiently. Also, check that building systems respond as expected under different solar generation conditions.
ima
4. Common Integration Challenges
Integration offers many benefits, there are some challenges that need to address:
- Compatibility of Devices: Not all solar systems or inverters are compatible with KNX out-of-the-box. You may need a communication gateway or middleware to enable communication.
- Data Mapping Complexity: Correctly mapping solar data to KNX devices can be complex, especially when dealing with multiple data points or systems from different manufacturers.
- Integration Cost: The initial setup cost, including inverters, gateways, and KNX devices, can be higher than using standalone systems.
- Network Reliability: Reliable communication between systems requires a stable network. Ensure the integration is properly configured and monitored to prevent connectivity issues.
5. Future Of Integration
The integration of KNX with solar systems is growing as buildings become smarter and more energy-efficient. The trend toward renewable energy, combined with the increasing demand for energy-efficient buildings, will drive further innovation in integration technologies. Here are some future trends to look out for:
- Advanced energy analytics will allow buildings to optimize energy usage more effectively by forecasting solar energy production and adjusting systems accordingly.
- Cloud-based platforms and IoT integration will enhance the real-time monitoring of solar power and enable remote control and diagnostics of building systems.
- Electric vehicle (EV) charging integration: As EV charging becomes more common, integrating solar systems with EV chargers and KNX systems can enable dynamic charging based on solar power availability.
6. Brands In Market
Huawei
- Huawei FusionSolar is a smart solar platform that can integrate with KNX-based systems using gateways or APIs. Huawei’s inverters and energy management systems allow for real-time monitoring of energy production and storage, which linked to KNX devices for automation and control.
- Integration: Huawei’s FusionSolar Smart PV platform integrates with KNX through third-party gateways or middleware that facilitate communication between the solar system and KNX-based building management systems.
SMA Solar Technology
- SMA is one of the world’s leading manufacturers of solar inverters and offers several solutions that integrates with KNX for energy management in buildings.
- Integration: SMA’s Sunny Portal and Energy Management Systems (EMS) linked with KNX systems via the SMA Sunny Home Manager or through third-party communication gateways, enabling dynamic control of energy usage based on solar production.
Fronius
- Fronius offers solar inverters and energy management systems that are highly compatible with automation systems.
- Integration: Fronius offers an Energy Management System that interface with KNX via the Fronius Smart Meter or third-party gateways, enabling real-time data transfer and control of building systems based on solar energy availability.
Schneider Electric
- Schneider Electric offers integrated solutions for energy management and solar systems. It Includes inverters, battery storage, and smart panels that can work with KNX systems.
- Integration: Schneider’s EcoStruxure platform for energy management integrates with KNX, enabling control of energy flow from solar systems, storage, and grid power. They offer solutions that can monitor and control solar power generation alongside other building systems.
SolarEdge
- SolarEdge is a leading provider of smart solar inverters and power optimizers, which used in KNX-integrated buildings to optimize solar energy generation and consumption.
- Integration: SolarEdge offers integration solutions that allow energy data (such as solar generation, consumption, and battery status). It will shared with KNX systems through modbus interfaces or third-party gateways.
Summery
KNX to solar system integration creates a smarter, more sustainable building. It combines the efficiency of solar energy with the automation capabilities of KNX. This integration allows for automated energy management, real-time monitoring, and optimized energy usage. It’s leading to significant cost savings, reduced carbon emissions, and enhanced building comfort. While it requires careful planning, configuration, and investment in the right hardware , software, the long-term benefits for both building owners and the environment make it a worthwhile endeavor.
