Introduction
The Digital Addressable Lighting Interface (DALI) has been a cornerstone of modern lighting control systems, providing standardized communication between luminaires, sensors, and control devices. With the evolution from DALI-1 to DALI-2, the protocol has advanced significantly, offering enhanced interoperability, reliability, and expanded device types. It ensures that devices from different manufacturers can work seamlessly, making lighting systems more flexible, future-proof, and easier to maintain.
DALI-2 is particularly important for commercial buildings, hospitals, retail spaces, and smart city projects, where complex lighting control, scene management, and energy efficiency are crucial. By adhering to the IEC 62386 standard, It provides a robust framework for both standalone and integrated building automation systems.
What is DALI-2?
DALI-2 is the second generation of the protocol, standardized under IEC 62386 parts 101–604. Unlike DALI-1, which primarily focused on luminaires, DALI-2 extends the standard to include sensors, input devices, and emergency lighting controllers. Key improvements include:
- Device Interoperability: Certified devices guarantee smooth communication between different manufacturers.
- Expanded Device Types: Supports LED drivers, electronic ballasts, sensors, pushbuttons, touch panels, and emergency lighting modules.
- Enhanced Diagnostics: Provides feedback on device status, failures, and power consumption.
- Improved Standard Compliance: certification ensures that all devices adhere strictly to IEC 62386, reducing installation and commissioning issues.
This evolution makes DALI-2 suitable not only for conventional lighting control but also for complex, integrated building automation systems.

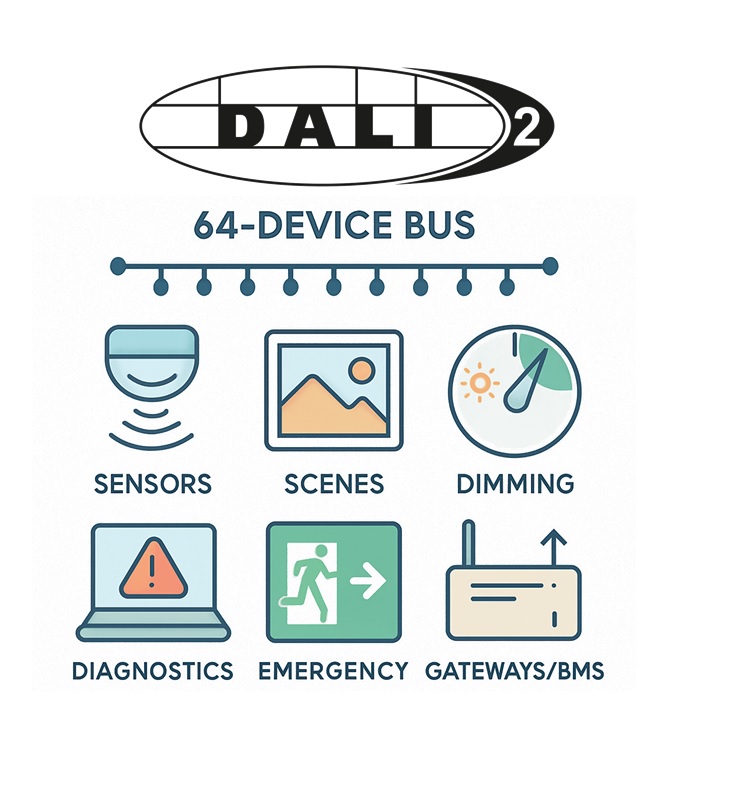

Functionalities and Features
DALI-2 offers several advanced features that enhance system control and efficiency:
- Device Control: Individual or grouped luminaire control, dimming, scene recall, and emergency overrides.
- Scene Management: Multiple predefined scenes can be stored and recalled via input devices or automation systems.
- Feedback & Diagnostics: Devices can report operational status, lamp failure, or energy usage to gateways or building management systems.
- Sensor Integration: Occupancy and daylight sensors can trigger automated actions, optimizing energy usage.
- Emergency Lighting Control: Emergency luminaires and central test modules are fully integrated, ensuring compliance and safety.
- Scalability: supports up to 64 devices per line, and multiple lines can be connected through gateways for larger installations.
These features make DALI-2 highly adaptable for offices, hospitals, airports, and retail chains, where reliability, energy savings, and user comfort are critical.
Technical Specifications
Understanding DALI-2’s electrical and communication specifications is crucial for designing robust systems:
- Bus Voltage: Nominal 16V DC (operating range: 9.5–22.5V)
- Maximum Bus Current: 250 mA per line
- Polarity: Polarity-free wiring simplifies installation
- Devices per Line: Maximum of 64 per DALI line
- Topology: Supports line, tree, star, or mixed layouts
- Communication Speed: 1200 bits/sec
- Isolation: Bus must be isolated from mains to prevent faults and ensure safety
Proper adherence to these specifications ensures reliable communication and long-term stability.
Comparison Table:
| Feature | DALI-1 | DALI-2 |
|---|---|---|
| Device Types | Luminaire drivers | Drivers, sensors, input devices, emergency modules |
| Certification | Optional | Mandatory DALI-2 certification ensures interoperability |
| Diagnostics | Limited | Full status feedback, energy usage, failure reporting |
| Scene Control | Basic | Advanced, supports multiple scenes per device |
| Interoperability | Partial | Guaranteed across certified devices |
| Emergency Lighting Support | Limited | Fully integrated with self-test & central test |
| Bus Voltage | 16V DC | 16V DC (9.5–22.5V range) |
| Devices per Line | 64 | 64 (multi-line via gateways) |
Integration with Gateways & Building Automation

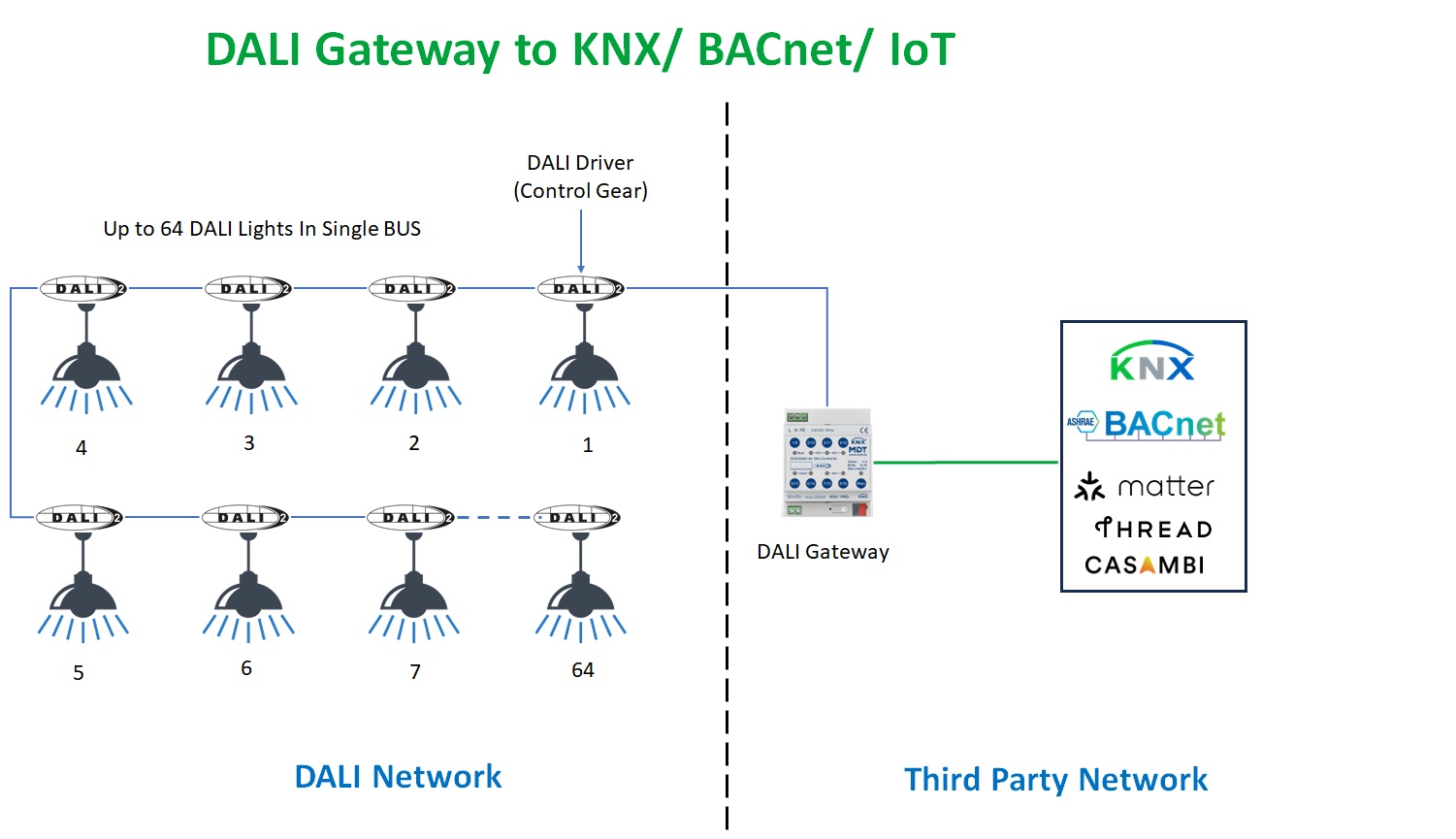

DALI-2 can seamlessly integrate with KNX, BACnet, and IoT platforms through gateways:
- KNX Gateways: Enable lighting to interact with HVAC, blinds, and sensors, providing centralized building automation.
- BACnet Gateways: Connect DALI luminaires to BMS for monitoring, scheduling, and fault detection.
- IoT Gateways: Allow cloud-based dashboards, predictive maintenance, and remote monitoring.
This integration enables energy optimization, predictive maintenance, and unified building control, making DALI-2 a core component in smart buildings.
Real-World Applications
- Office Buildings: Scene control allows customized lighting for meetings, presentations, and general office work. This improves energy efficiency while enhancing employee comfort and productivity.
- Hospitals: Emergency lighting and occupancy-based controls ensure patient safety at all times. These features also help reduce energy costs by dimming or turning off unused areas.
- Retail Chains: Centralized scene management creates uniform lighting across multiple stores, maintaining brand consistency. It also simplifies maintenance and optimizes energy consumption.
- Smart Cities: DALI-2 enables street lighting with predictive maintenance and adaptive control. This results in energy savings and real-time monitoring for city-wide efficiency and safety.
Best Practices for Implementation
- Device Selection: Always choose certified DALI-2 devices to ensure full interoperability between products from different manufacturers. This guarantees reliable communication and reduces installation issues.
- Addressing & Commissioning: Assign proper addresses and groupings to each device carefully during commissioning. Correct setup ensures seamless operation, scene recall, and efficient system management.
- Wiring & Topology: Use 2-core twisted pair cables and follow recommended line lengths for signal integrity. Select appropriate power supplies to maintain stable bus voltage across all devices.
- Monitoring & Diagnostics: Integrate gateways for centralized monitoring, enabling real-time feedback on device status, energy consumption, and failures. Predictive maintenance reduces downtime and operational costs.
- Compliance: Follow all IEC 62386 standards during installation to ensure safety, reliability, and interoperability. Compliance also future-proofs the system for upcoming upgrades and certified devices.
Future Trends in DALI-2
- IoT Integration: Cloud connectivity for predictive maintenance, analytics, and energy reporting.
- AI-driven Lighting Control: Adaptive lighting based on occupancy patterns and daylight availability.
- Digital Twin Integration: Simulate building lighting scenarios for planning and optimization.
- Enhanced Smart Sensors: Advanced occupancy, daylight, and environmental sensing for energy-efficient buildings.
DALI-2 continues to evolve, bridging the gap between traditional lighting control and fully integrated smart building systems.
Conclusion
DALI-2 represents a major leap forward in lighting control, offering interoperability, advanced diagnostics, and integration capabilities. By supporting a wide range of certified devices—including drivers, sensors, input devices, and emergency lighting modules— DALI-2 ensures reliable, scalable, and energy-efficient lighting systems.
Its integration with gateways, KNX, BACnet, and IoT platforms allows facility managers to achieve centralized control, predictive maintenance, and energy optimization, making it the preferred choice for modern offices, hospitals, retail chains, and smart city projects. Following best practices in wiring, commissioning, and device selection ensures long-term reliability, safety, and operational efficiency.
