Introduction

In a KNX-based smart home or building, the KNX automation controller acts as the central intelligence—managing communication between devices, orchestrating scenes, and ensuring efficient operation. These controllers are essential in transforming individual components (lighting, HVAC, security, etc.) into a unified, responsive, and energy-efficient automation ecosystem.

Unlike simple KNX actuators or sensors that perform isolated functions, KNX controllers offer logic-based decision-making, data logging, and remote access capabilities. Their role becomes increasingly vital in complex installations such as commercial buildings, hotels, and high-end smart homes.

Functions of a KNX Controller

A KNX controller (often referred to as a logic controller, IP controller, or building server) plays several key roles:

• Logic Processing: Executes if-then-else conditions, schedules, and automation routines.
• Centralized Visualization: Hosts web interfaces or connects to visualization platforms for real-time control and monitoring.
• Protocol Bridging: Connects KNX with other systems like BACnet, Modbus, DALI, or MQTT for IoT integrations.
• Remote Access & Monitoring: Enables secure control via mobile apps or browsers using VPN or cloud services.
• Energy Management: Tracks power usage and optimizes loads based on occupancy or tariffs.
• Time Scheduling: Automates devices based on time, date, or calendar events.
• Scene Control: Allows users to trigger complex scenes (e.g., “Away Mode” or “Welcome Scene”) with one command.

Example: A KNX controller can dim lights, lower blinds, and set HVAC to eco mode when “Away” scene is triggered from a keypad or app.

KNX Controllers Application

• Smart Homes: To control lights, AC, blinds, and security with customized logic.
• Office Buildings: For occupancy-based lighting, HVAC zoning, and energy saving.
• Hotels: To manage guest room automation, check-in scene setup, and centralized control.
• Educational Campuses: Automating classroom lighting, projectors, and air quality sensors.
• Industrial Facilities: Managing ventilation, daylight harvesting, and safety alerts.

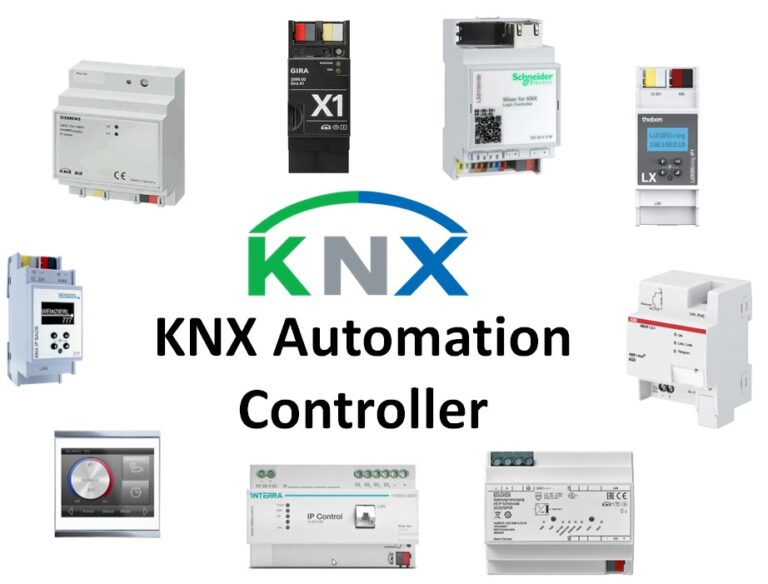

Available Brands and Models

Here are top manufacturers offering KNX automation controllers:

Technical Specifications to Compare

When selecting a KNX automation controller, look for:

• Logic Blocks: Number of supported logic functions or block types.
• Communication Interfaces: Ethernet, KNX TP, USB, Modbus, BACnet, MQTT.
• Memory: Required for logging, user data, and backups.
• Visualization Support: Built-in web interface or 3rd party compatibility (e.g., Home Assistant, OpenHAB).
• Security: VPN, TLS/SSL encryption for remote access.
• Cloud Services: Integration with Amazon Alexa, Google Assistant, or IFTTT.
• Power Supply: Some include integrated power supply units, reducing installation clutter.

Programming and Integration

Programming a KNX controller typically involves ETS (Engineering Tool Software) to configure its objects and addresses. Most advanced controllers also come with their proprietary configuration software (e.g., Gira X1 app, ABB Logic Tool) for drag-and-drop logic programming and visualization setup.

Integration Tips:

• Use KNXnet/IP for faster communication with IP-based interfaces.
• Combine with KNX weather stations for automated shading and HVAC.
• Leverage logic conditions to create adaptive lighting or comfort scenarios.
• Schedule automatic backup of controller logic to avoid downtime.

KNX Automation Controller Features

• Centralized Control: Simplifies complex automation projects.
• Flexibility: Add new scenes, schedules, or devices without changing wiring.
• Scalability: Suitable from small homes to large commercial buildings.
• Multi-Protocol Communication: Bridges different automation standards.
• User Customization: Personalized logic and visuals per user or group.

Functions of a KNX Logic Module

1. If-Then Logic Execution
   Example: If motion is detected AND it’s after 7 PM → turn on hallway light.
2. Boolean & Arithmetic Operations
   Combine multiple inputs (e.g., AND, OR, XOR) or perform calculations (e.g., average room temperature).
3. Timer Functions
   Delay, pulse, periodic, and switch-off timers are used for controlling outputs over time.
4. Scene Control
   Store and recall lighting, shading, and HVAC settings using logic-based triggers.
5. Threshold Monitoring
   Monitor temperature, lux levels, CO₂, or power consumption and act when thresholds are crossed.
6. Date/Time Scheduling
   Perform actions based on calendar events, public holidays, or user schedules.
7. Value Comparisons
   Compare values between sensors, user inputs, or time variables to make decisions.
8. Multi-condition Scenarios
   Run complex conditions across multiple zones or device types (e.g., If blinds are closed, temperature > 28°C, and window is shut → activate AC).

Expanded KNX Controller Selection Chart

This chart simplifies controller selection based on project size, interface needs, and user control preference.

Legend:

• KNX TP: Twisted Pair (standard KNX wiring)
• Visualization: Built-in UI for dashboards or app control
• Logic Blocks: Number of conditional actions/rules supported
• Remote Access: Native or via secure VPN/cloud

Comparison Notes:

• Domovea and Basalte offer very sleek UIs and excellent visualization options.
• Ekinex and IT GMBH stand out in energy monitoring and secure remote control.
• Weinzierl and Siemens are strong for industrial and IoT integration.
• Gira, ABB, and JUNG are robust for medium to large-scale building automation.

Conclusion

A KNX automation controller is not just a device—it’s the decision-making core of any smart automation setup. It empowers integrators to create flexible, efficient, and intelligent systems, tailored exactly to user needs. Whether you’re designing a high-end villa, a smart classroom, or a smart office, choosing the right KNX controller can make all the difference.
