Introduction: Understanding DALI and DMX in Lighting Control
In the world of architectural and stage lighting, two major control protocols dominate: DALI (Digital Addressable Lighting Interface) and DMX (Digital Multiplex). While both systems are designed to control lighting fixtures, they are built for fundamentally different use cases.
This article provides a comprehensive technical comparison of DALI and DMX, exploring their communication methods, installation requirements, scalability, control capabilities, and integration with modern automation systems. Whether you’re designing a commercial building, theater, or smart home, understanding the strengths and limitations of each protocol is essential for creating efficient, flexible lighting environments.
What is DALI?
DALI is a standardized digital protocol (IEC 62386) used for building and architectural lighting control. It enables bi-directional communication between a central controller and lighting devices (ballasts, drivers, sensors). DALI is ideal for applications that require energy efficiency, fault diagnostics, and fine-tuned lighting control.
Technical Highlights of DALI
- Digital communication over a 2-wire bus
- Supports up to 64 individually addressable devices per line
- Designed for general architectural and commercial lighting
- Enables scene control, dimming curves, and status feedback
- Easily integrates with building management systems (KNX, BACnet, etc.)
What is DMX?
DMX512 (Digital Multiplex) is a communication protocol originally developed for stage lighting and entertainment control systems. It uses a unidirectional digital signal over RS-485 to control up to 512 channels per universe.
Technical Highlights of DMX
- High-speed unidirectional signal transmission
- Supports 512 channels per DMX universe
- Used primarily in theatrical, concert, and entertainment lighting
- Controls RGB/RGBW fixtures, moving heads, fog machines, etc.
- No feedback from fixtures to controller
Technical Comparison Table: DALI vs DMX
| Feature | DALI | DMX512 |
|---|---|---|
| Signal Type | Digital, Bi-directional | Digital, Unidirectional (RS-485) |
| Number of Devices | 64 per bus (128 for DALI-2) | 512 channels per universe |
| Addressability | Fully addressable (device level) | Channel-based, fixtures mapped to addresses manually |
| Data Rate | 1.2 kbps (slow, for building environments) | 250 kbps (fast, for real-time stage lighting) |
| Scene Management | Yes, via memory in drivers or controllers | Handled by console/lighting desk |
| Dimming Control | Smooth, via digital commands with fade timing | Manual or programmed dimming via controller |
| Two-Way Communication | Yes (device status, faults, energy usage) | No (controller sends, fixture only receives) |
| Topology | Flexible: star, daisy chain, tree | Strict daisy chain |
| Wiring Distance | Up to 300 meters per DALI segment | 1200 meters (with repeaters) |
| Fault Detection | Built-in via feedback | None; diagnostics only at controller level |
| Primary Use | Commercial, smart buildings, general lighting | Stage, live shows, dynamic RGB lighting |
| Automation Integration | Seamless with KNX, BACnet, Modbus | Requires middleware for automation |
| Power Requirements | Low-voltage control bus (16V DC) | Separate from fixture power |
| Scalability | High, with multiple buses and gateways | High, using multiple universes |
DALI System Architecture and Use Cases
DALI uses a 2-wire low-voltage bus to deliver both power and data to connected devices. Each driver or ballast on the bus can be individually addressed, grouped, or included in scenes.
Advantages of DALI:
- Energy monitoring and diagnostics
- Adaptive lighting control (via occupancy or daylight sensors)
- Simplified commissioning and re-configuration
- Ideal for offices, schools, hospitals, and homes
Use Case Example:
In an office building, DALI allows dynamic control based on daylight availability, occupancy, and time schedules, helping reduce energy costs while improving comfort.
DMX System Architecture and Use Cases
DMX transmits high-speed digital data over a single cable in a daisy-chain topology. Each fixture listens for its assigned channel data and reacts in real time. DMX is ideal for entertainment lighting where precise timing and dynamic effects are critical.
Advantages of DMX:
- Real-time control of complex lighting scenes
- Perfect for RGB, pixel-mapped fixtures, moving lights
- Simple wiring for small systems
- Supported by most entertainment consoles and software
Use Case Example:
In a concert or theater, DMX is used to control lighting effects like color changes, movement, strobe, and fog machines, all synchronized with music and stage cues.
Integration with Automation Systems
DALI Integration:
- Directly compatible with KNX, BACnet, and Modbus
- Allows two-way communication for diagnostics, control, and energy management
- Supports advanced features like occupancy sensing, emergency lighting, and time-based scheduling
DMX Integration:
- Not designed for building automation
- Requires protocol converters or DMX gateways to interface with KNX or BMS
- Primarily controlled via dedicated lighting desks or media servers
Scalability and Expansion
DALI:
- Expandable with DALI gateways, routers, or DALI-2 multi-master setups
- New fixtures can be added and readdressed easily
- Supports broadcast control, grouping, and individual commands
DMX:
- Scalable by adding additional universes (each with 512 channels)
- Requires DMX splitters, repeaters, or Art-Net/sACN networks for large systems
- Channel addressing must be carefully planned
Precision and Performance
DALI:
- Slower response time (~1.2 kbps), but ideal for gradual fades and ambient lighting
- Not suitable for real-time effects or moving fixtures
- Highly reliable in fixed environments
DMX:
- High-speed transmission (250 kbps) supports real-time effects
- Timing-critical for shows and pixel lighting
- Vulnerable to signal loss over long chains without terminators and boosters
Wiring and Commissioning : DALI Vs DMX
| Aspect | DALI | DMX |
|---|---|---|
| Cabling | 2-wire, no polarity, low-voltage | 2-wire shielded twisted pair (RS-485) |
| Topology | Flexible (star, tree, daisy-chain) | Strict daisy-chain |
| Max Length | 300 m per line | Up to 1200 m (with repeaters) |
| Terminating Resistor | Not required | Required at line ends |
| Commissioning | Software-based, with group/scene setup | Manual addressing or via controller |
| Programming Tools | DALI configurator, BMS software | Lighting consoles, Art-Net nodes |
When to Use DALI vs When to Use DMX
Choose DALI if:
- You need automated lighting control in commercial or residential environments.
- You want feedback and diagnostics from fixtures.
- You’re integrating with a building management system.
- Your lighting needs are static or ambient-focused, not dynamic or timed.
Choose DMX if:
- You’re building a stage, entertainment, or performance lighting system.
- You require real-time control of RGB/RGBW or dynamic effects.
- You use moving head lights, pixel mappers, or media server control.
- Lighting must respond to timing cues or music with millisecond precision.
Limitations of Each Protocol
| Protocol | Limitations |
|---|---|
| DALI | Slower communication, not suitable for fast-changing effects or stage lighting. Limited number of devices per bus. |
| DMX | No feedback from devices, rigid wiring topology, not optimized for energy management or automation systems. |
Future Outlook and Evolving Technologies

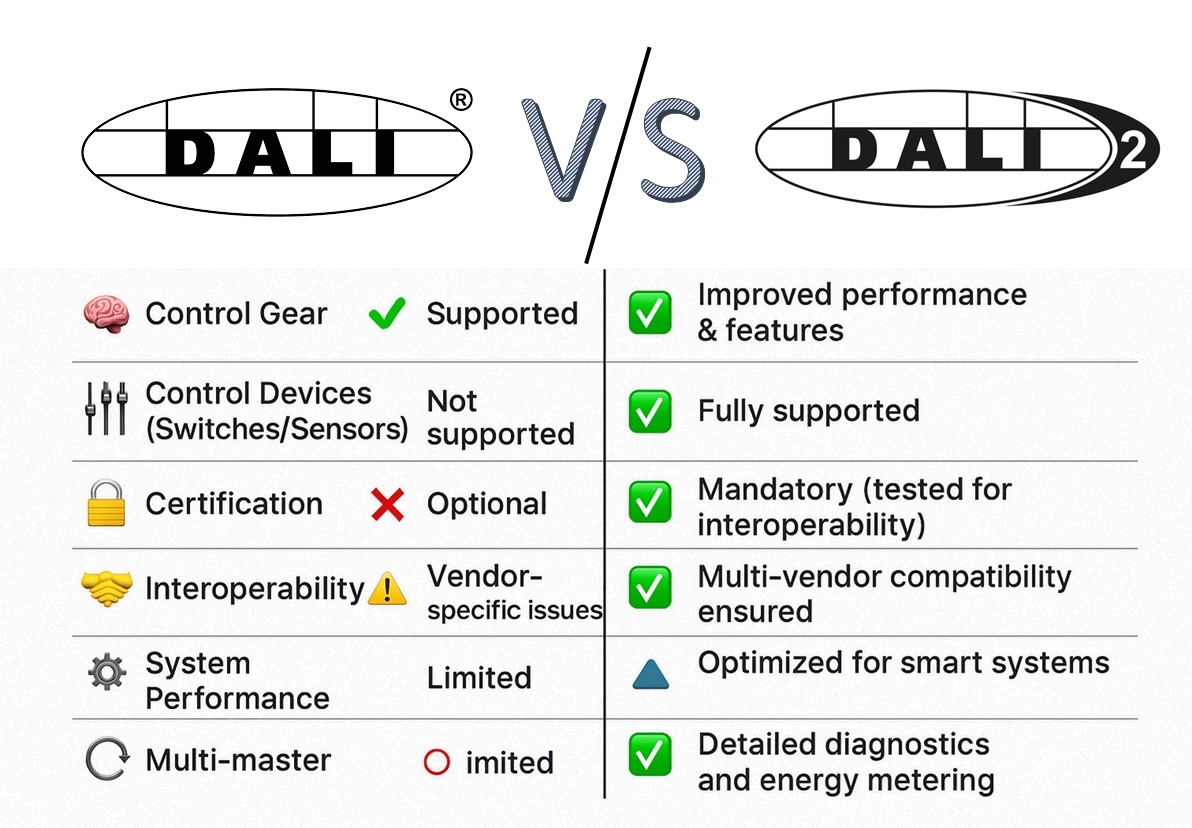

- DALI-2 continues to evolve with support for sensors, multi-master control, and wireless (DALI+ or Bluetooth mesh) extensions.
- DMX over IP (Art-Net, sACN) expands scalability and flexibility for networked lighting.
- Some hybrid systems now offer DMX-DALI converters, bridging the gap between building and entertainment control systems.
Conclusion: DALI VS DMX
The decision between DALI and DMX comes down to the environment and use case:
- For commercial, architectural, and automated lighting, DALI is unmatched in energy management, control, and integration flexibility.
- For entertainment, event, and dynamic RGB lighting, DMX offers real-time performance, speed, and creative control.
In some large or complex installations (like hotels with both public lighting and event spaces), a hybrid of both protocols may be deployed using protocol bridges.
